A multimodal traffic system should combine complementary measurements, not simply place three sensors on one pole. Radar, video, and infrared must share geometry, time, event identity, health status, and a defined fallback mode before their fused output can be trusted by traffic control or safety applications.
Table of Contents
Assign One Job to Each Modality
Radar measures range, radial velocity and angle according to its architecture. Video supplies texture, color, class and visual evidence. Thermal or passive infrared responds to heat contrast and can help when visible imagery loses detail. Their weaknesses also differ: radar has limited visual semantics, cameras depend on scene visibility, and thermal classification changes with contrast and weather.
The FHWA Traffic Detector Handbook treats microwave radar, video and infrared as distinct traffic-sensor technologies with different capabilities. A fusion design should preserve those distinctions instead of claiming that every modality confirms every event.
| Required output | Lead modality | Supporting modality | Acceptance focus |
|---|---|---|---|
| Speed and trajectory | Radar | Video | Track continuity and lane assignment |
| Detailed visual class | Video | Radar | Class confusion by light and occlusion |
| Night pedestrian warning | Thermal or video | Radar | Contrast, range and warning timing |
| Evidence clip | Video | Radar trigger | Timestamp, pre-event buffer and retention |
| Count and occupancy | Radar or video | Other modality | Per-lane bias and duplicate suppression |
If the project cannot state which sensor leads each output, it is not ready to specify fusion.
Choose the Fusion Level Deliberately
Early fusion combines measurements or representations before object decisions. It can exploit more information but requires close calibration, timing and often shared training data. Feature-level fusion combines extracted characteristics. Late or decision-level fusion correlates independently detected objects and is easier to isolate when one modality fails.
Roadside systems often benefit from a hybrid approach: local radar and video create modality-specific tracks, then a fusion service matches them by time, geometry and motion. This preserves diagnostic evidence while still producing one event stream.
The architecture document should define the behavior when matches are ambiguous. A fused object must not be created twice when radar and video disagree, and an unmatched radar track should not disappear merely because the camera is blinded by glare.

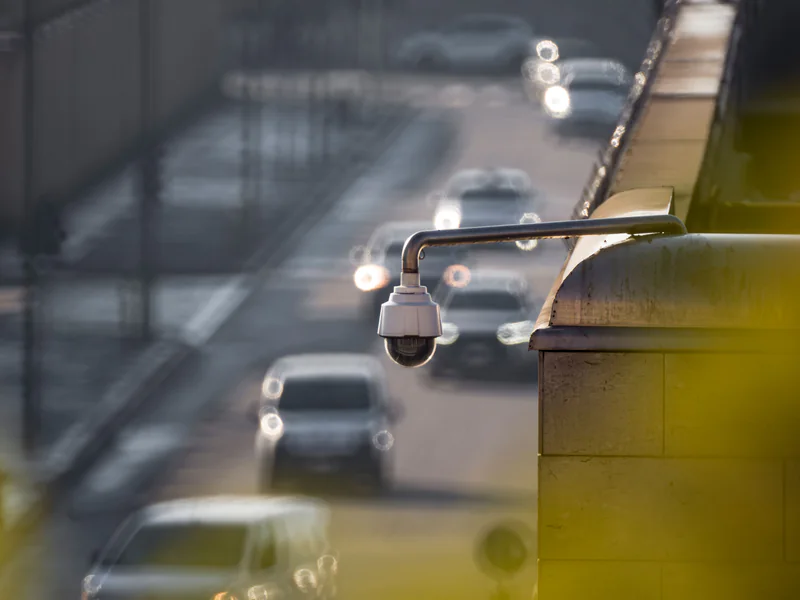

Calibration Has Four Parts
Mechanical alignment puts the sensors into a stable physical relationship. Intrinsic calibration describes each sensor’s measurement model. Extrinsic calibration transforms observations into a shared road coordinate frame. Time calibration ensures that objects moving through that frame are compared at the same moment.
Validate calibration with surveyed points and moving targets in every lane. Include trucks that occlude smaller users, stopped queues and turns across the field of view. Store the calibration version beside event data and require an alert after pole movement or configuration drift.
The Event Contract Is the Integration Boundary
A traffic platform needs more than an object label. Define event ID, source sensors, timestamp and uncertainty, road coordinates, lane, direction, class, confidence, speed, health state and links to any retained media. Specify units, coordinate reference, update frequency and what happens to late or duplicate messages.
The radar-video traffic architecture guide describes this contract in detail. Infrared adds another observation source but should not change the event semantics consumed by signal control or analytics.
Test network interruption and device restart. The platform should distinguish a true zero count from missing data and should not replay old events as new incidents after reconnection.
Privacy and Cybersecurity Follow the Data Flow
Radar tracks generally contain less directly identifying information than high-resolution video, but the complete system may still process plates, faces, trajectories and device identifiers. Define purpose and retention for each data type. Edge processing can discard continuous imagery while retaining short event clips, but only if the configuration and audit logs prove that behavior.
Cybersecurity requirements should cover signed updates, unique credentials, encrypted management, certificate lifecycle, network segmentation, vulnerability reporting, support period and secure recovery. NIST’s IoT device cybersecurity guidance provides a useful baseline for connected roadside devices.
Privacy and cybersecurity acceptance should use evidence: exported configuration, account and role tests, update verification, retention checks and an audit-log review.
Use Site Tiers Instead of One Universal Stack
Tri-modal sensing is justified at high-consequence conflict points only when infrared closes a measured gap. Radar-video is often sufficient for multi-lane flow, speed, queue and event monitoring. A single modality may be appropriate for temporary counts or a controlled one-purpose site.
Create tiers from operational consequence and scene difficulty:
- high-consequence, difficult visibility: radar, video and infrared with health monitoring;
- general intersection analytics: radar-video fusion;
- temporary or low-consequence measurement: one sensor with documented limitations.
This prevents the most complex device from becoming the default. The smart-city transportation solution should be configured by output and site tier, not by a blanket requirement for three modalities.
Procurement and Acceptance
Request modality-specific specifications, mounting and calibration tolerances, degraded-mode behavior, event-schema documentation, cybersecurity support, retention controls and reference results by lane and class. Avoid one aggregate “accuracy” figure that hides night, queue or vulnerable-road-user performance.
Acceptance should proceed from individual sensor checks to fused events, platform integration and a representative soak period. Payment milestones should require a calibration record, lane- and class-level results, failure-mode test, privacy configuration and complete data export.
Buyers can compare current traffic sensing systems and use the resource library to structure evidence requests. For a site-specific radar-video or tri-modal design, contact OMNI UXV with the required outputs and failure modes.
FAQs
When is infrared worth adding to radar-video traffic sensing?
Infrared is most useful where night, glare, tunnel transitions, or unlit pedestrian areas create a documented gap that radar and visible video cannot close. Validate the thermal contrast and target classes at the actual site before specifying a third modality.
Can a multimodal traffic sensor keep operating after one sensor fails?
It can if degraded modes are designed and exposed. The platform should identify the failed modality, lower confidence or suppress affected events, preserve device health records, and recover without silently treating single-sensor output as fully fused data.
Does radar-video fusion automatically improve privacy?
No. Radar can reduce the need to retain imagery, but privacy depends on purpose, edge processing, clip triggers, retention, access, and export. A system that records continuous identifiable video remains a video-data system even if radar also supplies tracks.
How should fused traffic events be accepted on site?
Test each modality against a traceable reference, then test the fused event by lane, class, time, and scenario. Include night, glare, queues, occlusion, network interruption, duplicate handling, clock drift, and recovery from a sensor outage.
