Traffic queue detection should tell an operator where a queue ends, how confidently that position is known and whether the information is still current. Average flow and speed help describe traffic, but they do not by themselves establish a reliable queue warning. Design the detector, queue logic, communications and roadside message as one monitored chain.
Table of Contents
Define a Queue State That Operators Can Use
A queue is not merely a low speed reading. A vehicle turning, a maintenance vehicle or a short-lived slowdown can create similar measurements. The project needs an agreed definition that relates speed, persistence, location and lane behavior to the road’s operating conditions.
Record whether the system reports queue presence, tail location, queue length or all three. Define the reference direction and location convention so an operator can distinguish the upstream tail from the downstream restriction.
A lane-specific queue matters when adjacent lanes behave differently. A single road-wide average can hide a stopped lane beside moving traffic. Decide how merging lanes, ramps and temporary lane shifts will be represented.
There is no universal speed threshold or persistence interval appropriate to every road. The responsible traffic engineer should approve those settings and the warning strategy for the site. Keep the configuration with the deployment record.
The USDOT briefing on work-zone queue warning describes a system combining traffic sensing, processing, communications and warnings. Its reported study outcomes belong to their specific deployments; they are not a guaranteed crash-reduction figure for another site.

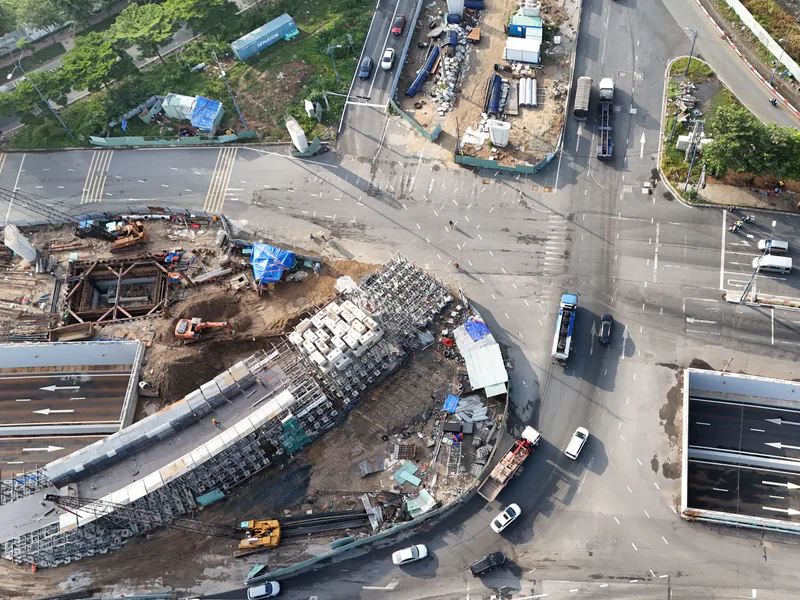

Place Sensors for the Moving Tail
Design coverage around where the queue can develop, not only where a convenient pole exists. The tail may move upstream beyond the original observation area as demand or work-zone capacity changes.
Draw the usable coverage on a road layout. Include bends, crests, heavy-vehicle occlusion, barriers and lane shifts. A manufacturer’s reference distance is not proof that the same measurement quality holds across every lane and obstruction at that distance.
Where several sensors are used, decide how observations are joined. Identify overlapping and unobserved sections, preserve source identity and test the transitions. Two accurate local measurements can still produce an incorrect corridor picture if they are assigned to the wrong lane or road position.
If the queue extends beyond coverage, report the limitation. “Tail upstream of observed area” is operationally different from a measured tail at the last sensor. The system should not turn an observation boundary into a false location claim.
Select the input data before the detector
Ask the queue-logic supplier which measurements and update behavior it needs. The TRVF-8221-SCO traffic flow detector provides a relevant starting point for flow, speed, occupancy and trajectory requirements. The TRVF-8221 radar-video fusion sensor is another configuration to evaluate against the site.
Neither product name establishes that a complete, commissioned queue-warning application is included. Confirm the available data fields, software functions and integration responsibilities. The radar-video sensor architecture article addresses sensor selection; the queue application adds a distinct layer of logic and operational acceptance.
Budget Time from Observation to the Roadside Message
End-to-end warning delay includes more than the sensor update rate. Allow for observation, queue-state confirmation, processing, communications, message control and the warning device’s update behavior.
Measure those stages using synchronized records. A fast detector can feed a slow warning chain, while aggressive filtering may delay the first useful alert. Conversely, insufficient filtering may produce messages that change too frequently to be useful.
Agree on a data-age limit and the response to stale information. Loss of observations is not evidence that the queue has cleared. Display the degraded state to the responsible operator and apply the approved fallback rather than silently reverting to a normal condition.
Warning clearance deserves its own test. A message that remains after traffic recovers can undermine confidence; clearing too early can remove a warning while the tail still exists. Use observed queue recovery, not just the absence of a fresh packet.
Message wording, placement and control belong within the road authority’s approved traffic-management process. This article does not supply a sign-placement distance or substitute for that design.
Measure the Errors That Affect the Warning
Test against synchronized reference observations with adequate coverage of the relevant road section. Mark the queue definition and reference method before reviewing results so the test is not adjusted to flatter the system.
| Measure | Reference evidence | Failure the test should expose |
|---|---|---|
| Queue presence | Time-aligned lane observations | Stopped traffic missed or routine slow traffic misclassified |
| Tail position | Observed tail mapped to road location | Tail placed in the wrong lane or beyond actual coverage |
| Warning onset | Observation and message timestamps | Excessive delay across the full chain |
| Warning clearance | Queue recovery and message record | Premature clearance or a stale warning |
| Coverage transition | Queue moving between observation areas | Discontinuity or duplicated queue segments |
| Degraded-state behavior | Controlled sensor or link interruption | Missing data interpreted as no queue |
Report the test conditions with the results: lane layout, traffic mix, visibility, weather, observation duration and software configuration. A single successful demonstration during light traffic does not establish performance during a long queue behind heavy vehicles.
Include false warnings and missed events, not just the number of detected queues. Retain examples of disagreements with the reference record and explain their resolution. Where the reference itself is uncertain, preserve that uncertainty.
Price the Warning Chain, Including Its Upkeep
Separate detector cost from the cost of a functioning service. The budget may include queue software, communication links, power, mounting, warning devices, traffic-management approvals, monitoring and maintenance.
Mobile work zones add repeated setup and recommissioning. Include the labor needed to relocate equipment, update the layout, check communications and demonstrate the new coverage.
Publication dates can mislead a cost comparison. A USDOT cost entry published in February 2026 draws on a 2021 source and reports costs in 2020 dollars. It can inform the structure of a budget, but it should not be presented as a current 2026 supplier quotation.
For competing proposals, compare the same operating scope and contract period. Identify who monitors failures, who can change a message and who responds when a device is unavailable. An unattended alarm inbox is not an operating model.
Recommission When the Road Changes
Treat a moved sensor, changed lane layout or altered queue algorithm as a controlled change. Update the location record and repeat the affected tests before relying on the revised system.
The FHWA fact sheet on active management of queue-warning messages places message management within an ongoing operational process. The engineering implication is straightforward: the queue warning needs an owner throughout its use, not only at installation.
Handover should include the approved queue definition, coverage map, time budget, message-control responsibilities, degraded-state procedure and test evidence. Keep a record of subsequent moves and configuration changes.
