Industrial UAVKTC3

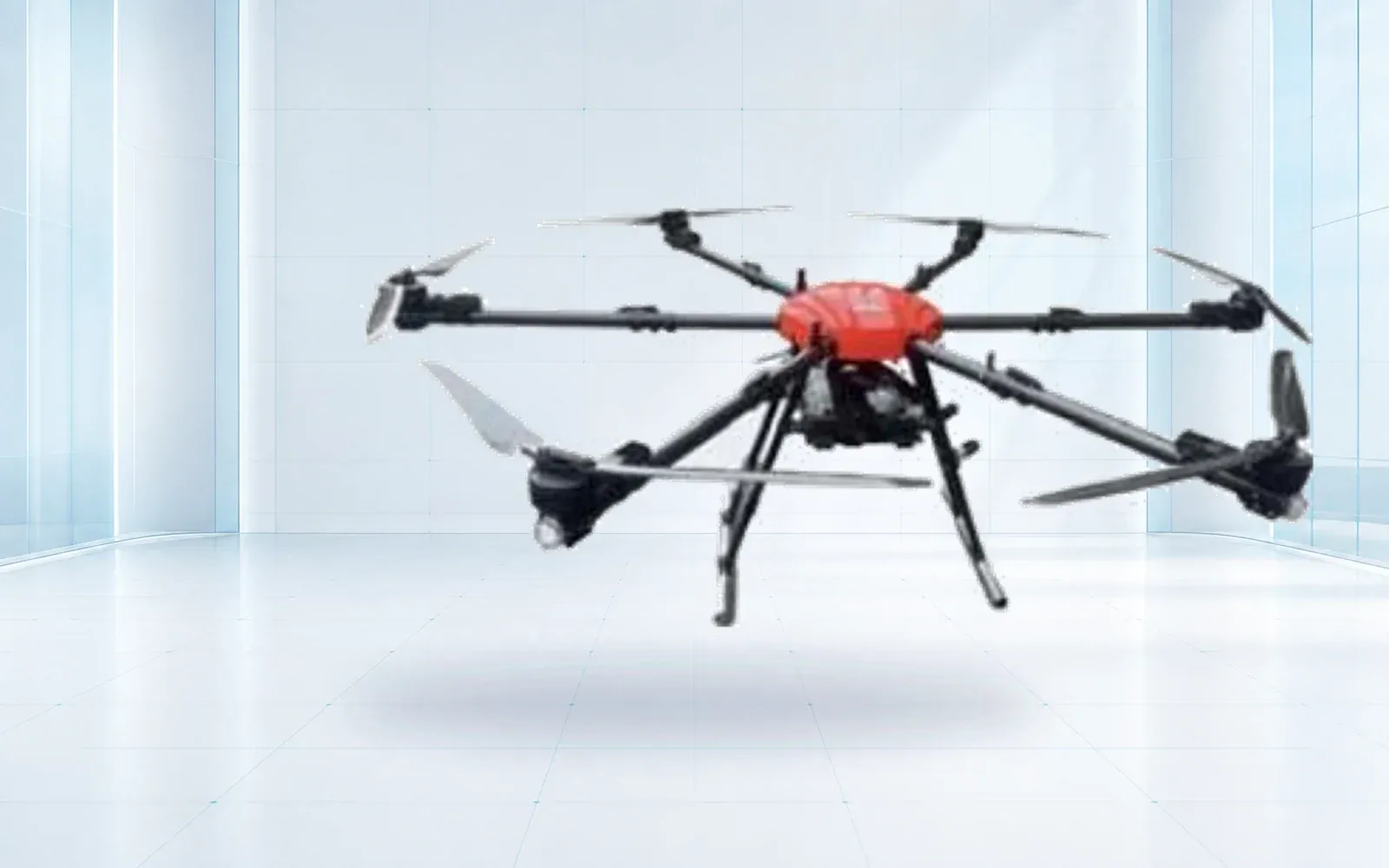

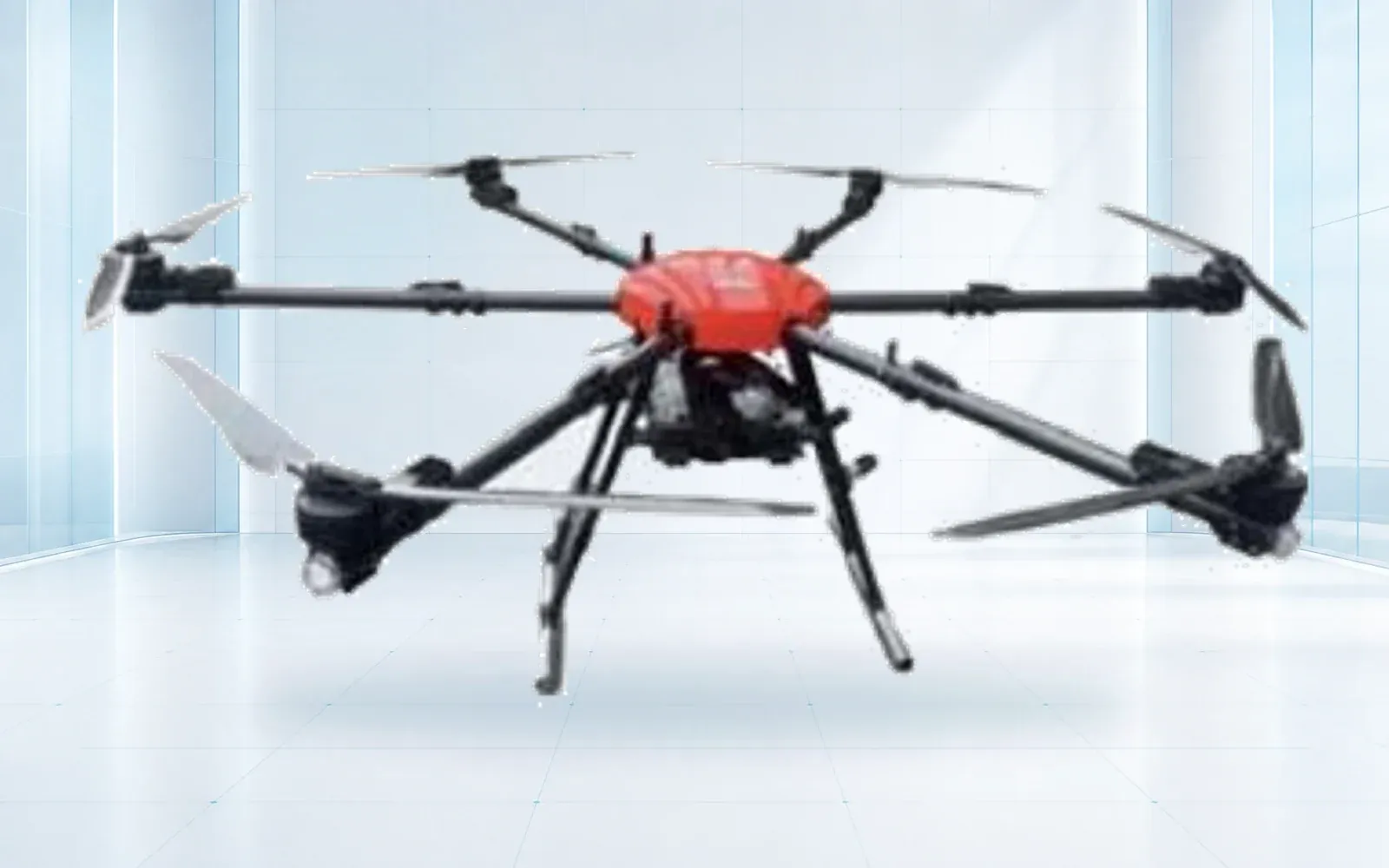

KTC3 Heavy-Lift UAV
Extended endurance and 60 kg payload for repeatable logistics missions.
The KTC3 extends the PRO-series payload envelope while retaining multi-constellation RTK positioning and automated protection. It is intended for planned logistics routes and controlled industrial sites.
- Maximum payload
- 60 kg
- Maximum endurance
- 80 min
- Control range
- 20 km
- Maximum takeoff weight
- 122–125 kg
System capabilities
What this configuration is designed to do
- 60 kg maximum payload
- RTK orientation
- Autonomous routes
- Real-time flight-data recording
Application fit
Typical mission applications
- 01Mining logistics
- 02Remote site resupply
- 03Disaster response
- 04Industrial transport
Technical data
Technical specifications
Core performance and interface data for preliminary system selection.
Confirm a project configuration →| Maximum payload | 60 kg |
|---|---|
| Maximum endurance | 80 min |
| Control range | 20 km |
| Maximum takeoff weight | 122–125 kg |
| Wind resistance | Level 7 reference rating |
Engineering path
From shortlist to a defined system
A clear sequence keeps product selection, integration and acceptance tied to the mission.
- 01
Mission review
Confirm the environment, users, required outcome and constraints.
- 02
System configuration
Resolve payload, interfaces, accessories and performance targets.
- 03
Acceptance plan
Agree tests, documentation, training, delivery and handover criteria.
Solution pathways
Where this product fits
Selection context
Related engineering guidance
Use these guides to test the mission assumptions behind a product shortlist.
Operational Guide
Drone Endurance Planning: Turn a Flight-Time Claim Into a Mission Budget
Plan usable drone endurance with a segment energy budget for payload, wind, altitude, reserves, diversion, battery condition, and representative flight tests.
Engineering Guide
Drone Payload Integration: Freeze Mass, Power, Data, and Acceptance
Integrate drone payloads with an interface matrix covering mass, center of gravity, mounting, power, thermal control, data, failure behavior, and flight acceptance.
Product FAQ
Can KTC3 be customized?
Integration can be reviewed around the mission, selected options and interfaces. Typical engineering inputs include 60 kg maximum payload, rtk orientation, autonomous routes, destination-country requirements and the intended operating environment.
What information is needed for a quotation?
Provide the destination country, operating scenario, required quantity, target performance, payload or integration requirements, delivery timing and any mandatory standards.
