Underwater ROVQ180

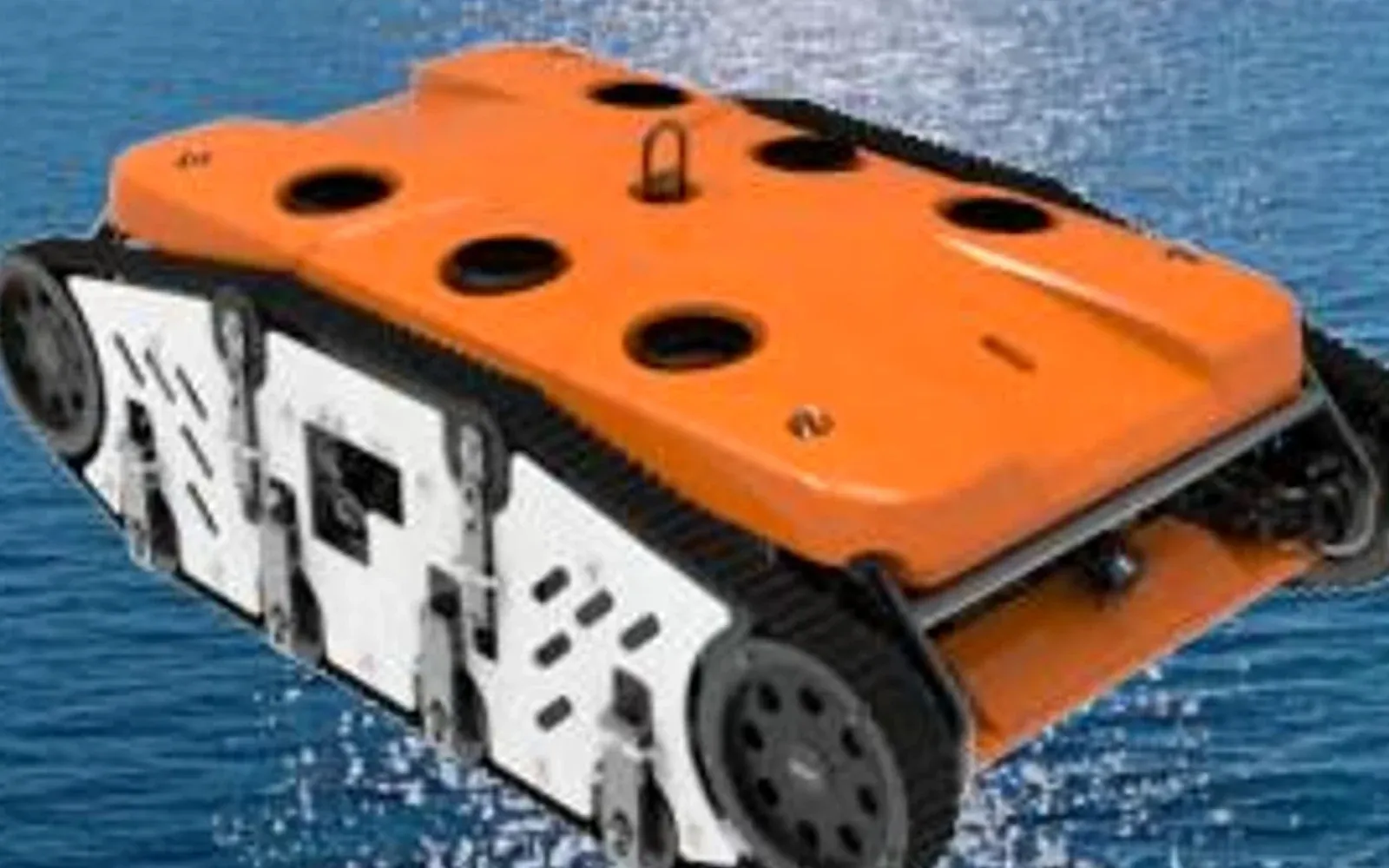

Q180 Hull & Dam Cleaning ROV
A tracked cleaning ROV for ship hulls, dams and aquaculture structures.
The Q180 combines thruster-assisted surface adhesion, an adaptive cleaning disc and wheel odometry. It is intended for controlled underwater cleaning and inspection workflows.
- Weight in air
- 180 kg
- Operating depth
- 0–100 m
- Current resistance
- 1.2 kn reference
- Reference cleaning efficiency
- 500 m²/h
System capabilities
What this configuration is designed to do
- Right-angle cornering
- Adaptive cleaning disc
- Wheel odometry
- Optional positioning and navigation
Application fit
Typical mission applications
- 01Hull cleaning
- 02Dam cleaning
- 03Cage maintenance
- 04Underwater surface inspection
Technical data
Technical specifications
Core performance and interface data for preliminary system selection.
Confirm a project configuration →| Weight in air | 180 kg |
|---|---|
| Operating depth | 0–100 m |
| Current resistance | 1.2 kn reference |
| Reference cleaning efficiency | 500 m²/h |
| Rated power | 9 kW |
Engineering path
From shortlist to a defined system
A clear sequence keeps product selection, integration and acceptance tied to the mission.
- 01
Mission review
Confirm the environment, users, required outcome and constraints.
- 02
System configuration
Resolve payload, interfaces, accessories and performance targets.
- 03
Acceptance plan
Agree tests, documentation, training, delivery and handover criteria.
Selection context
Related engineering guidance
Use these guides to test the mission assumptions behind a product shortlist.
Engineering Guide
ROV Cameras in Turbid Water: Control Standoff, Lighting, Motion, and Evidence
Improve low-visibility ROV inspection by testing camera and light geometry, controlling standoff and motion, preserving scale, and handing off to sonar.
Operational Guide
ROV Sonar Inspection: Search, Reacquire, Inspect, and Report
Plan ROV sonar inspection from shakedown and search pattern through contact marking, reacquisition, close inspection, coverage control, and reporting.
Product FAQ
Can Q180 be customized?
Integration can be reviewed around the mission, selected options and interfaces. Typical engineering inputs include right-angle cornering, adaptive cleaning disc, wheel odometry, destination-country requirements and the intended operating environment.
What information is needed for a quotation?
Provide the destination country, operating scenario, required quantity, target performance, payload or integration requirements, delivery timing and any mandatory standards.
